Installing Oracle Applications Release 12 On Windows 2003

12:52 AM Posted by Mohammed Abdur Rahman 10 comments
Installing Oracle Applications Release 12 On Windows 2003


Preface: There are many changes in the installation process of Release 12 compared to 11i. I will illustrate here in detail its installation on Windows 2003 environment.

Step I: Partitioning and OS Installation

Pre-requisites:

As before a Good Computer :-)  oops…not just a good computer.. A Very Good Computer :-) The recommended (Minimum) pre-requisites are:

Hardware

Processor : Pentium 4

Memory : 4 GB RAM

HDD : 250 GB or higher

Optical Drive : CD/DVD-ROM (For copying installation files from CDS/DVDS)

Software

OS: Windows 2003

Release maintenance tools: (a) VC2005 (b) MKS Toolkit or Cygwin (c) Dotnet

We can install VC98 also for testing purposes as the system will not stop if VC98 is available, but absence of VC98 or VC2005 will result in installation error.

MKT Toolkit or Cygwin is mandatory, without which installation will result in error.

Dotnet is also mandatory, though I didn’t find mention of it in the installation manuals. The same can be downloaded from the Microsoft website.

http://www.microsoft.com/downloads/details.aspx?FamilyID=0856eacb-4362-4b0d-8edd-aab15c5e04f5&displaylang=en

Once we have all the above, make the following partitions at the time of installing the OS:

C:\ >: 20GB (For installing Windows 2003)

D:\ >: 180GB or more (For installing Oracle Applications)

F :\>: 50GB (For Staging Area/Installation Files)


Note: Drive letters are optional except for C:\.

  • Install Windows 2003 on drive C.

  •  Once the OS is installed, right-click on My Computer and Select Properties.

  •  Select the tab Computer Name and Click button Change…

  • Give the name of the computer (For Example anything, if it’s not already given during the installation and click Button More…

  • Give the primary DNS suffix for the computer (For Example everything.com and Click Button OK (3 times to save the changes)

  •  Create ‘Oracle’ User Account and make it a member of ‘Administrators’ groups

  •  Restart the computer.

Step II: Creating Staging Area for Apps 12 Installation

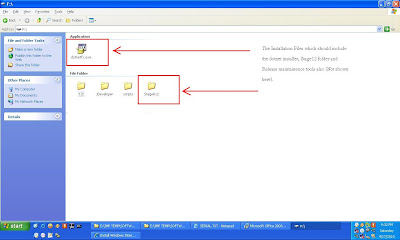

Create a folder named Stage12 in F:\ Drive and copy the installation files in it.

  •  The top level directory i.e., Stage12

  • The sub-folders in the main Stage12 directory.

Step III: Install Other Required Softwares

Install other required software like VC98/VC2005, MKS Toolkit or CYGWIN and Dotnet. The installations of these programs are like any normal windows program installation and I assume, you have the knowledge to do so.

Step IV : Install Applications

For installing the applications, go to the drive where you have copied the installation files and go to the following folder (Example only as the drive on your system may differ.):

F:\ Stage12\startCD\Disk1\rapidwiz

Double click rapidwiz.cmd icon to launch Rapid Installer.


  • Click Next after review the details.

  • The option to install or upgrade has to be selected. Also we have the option to use ‘Use Express Install’ for vision instance wherein the most commonly used Oracle Apps modules are installed with default settings.
  • If you have Oracle Support credentials you can enter the same as these are useful for Oracle Configuration Management and for support from Oracle. For testing purposes, you can leave these fields blank.

  • By default the option ‘Create a new configuration’ is selected for new installations. When a installation is restarted then the second option i.e., ‘Load the following saved configuration’ will be selected by default. As we are going to do a new installation, we can click on Next button while the default option is selected.

  •  For new installations, most of the settings are default and just need to click Next.

  • The default ports are selected by default.

  • Select the Database type as Vision Demo Database as we are installing this for testing purposes and we will get a pre-configured application database for the imaginary organization ‘Vision Corporation’. This is very helpful while designing similar solutions. Also select the host name, OS, installation directory etc.

  • Give the path of Release maintenance tools, Host, Domain, Base directory etc and click on Next.

  • Click on Next as most of the settings are default for installation on a single PC. These options will be useful when the applications and database are on two or more different servers.

  • The system will perform a pre-installation test whether all the prerequisites exists or not.

  • The rapidwiz installer will check the prerequisites like port availability, disk availability, release maintenance tools etc.

  • Upon successful completion of test, the system will show the test results. If all the tests are passed, we can proceed with the installation by clicking on Next.

  • Review the Component installation and click on Next.

  • Before installation, the rapidwiz will alert about the installation as the installation will take 4-5 hours or more.
  • Installation in progress!

  • Rapidwiz is unzipping and installing the application files.

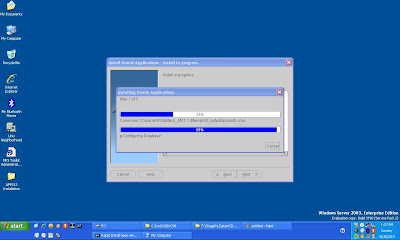

  • Once the unzip completes, the rapidwiz will install the database. At this point of time, if the Dotnet application is not installed previously, then the installation will fail. The system will populate a command window and automatically some commands are executed in this window as shown below:

  • Installation goes into next phase.


  • Stage 2 of installation completed.

  •  Installation progress in the Command window.



  • Pure techie messages :-)


  • Phase 4 of installation in progress.

  •  Installation successful :-) . The system gives a report for the same.

  • Last step of installation. We can connect to application from this step by clicking on the button ‘Connect to Oracle Applications Release 12.1.1’ or click on finish to connect later.

  • Upon connecting to the Applications URL, we are presented with the Microsoft Phishing Filter message. (This varies based on the browser settings). Select as per your security requirements.

  • The login page is displayed. For vision instance, we can use the default username and passwords i.e., sysadmin/sysadmin.

  •  The default responsibilities for the username SYSADMIN are displayed.

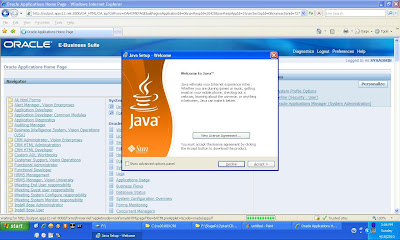

  • Click on the desired responsibility and then on the function. Based on browser settings, a message will be displayed for installing the Sun Java Addin.

  • Install the Java Addin. This is mandatory for accessing the Oracle Applications.


  • Click on Accept button to install the addin.


  • After installation click on any function again and a security warning message will come. Select Run to start Oracle Applications.



  • Based on browser settings, the pop-up blocker will stop Oracle Applications from launching the applet. Set the pop-up blocker property as per your security requirements and also to allow Oracle Applications to launch the applet.



  • Oracle Applications 12 Up And Running :-)

10 comments:

Unknown said...

Hi,

Thanks for information. Can we install oracle applications 12R in windows XP professional. I have tried but it is throwing error at stage 3.

Kindly let me know on this.

Thanks
Srikanth

Mohammed Abdur Rahman said...

Hi Srikanth

Yes we can install it on XP also. I tried it once but after successfull installation also there were issues. The best OS is Windows 2003. If you still want to try installation on XP, please give the exact error number or details.

All the best.

Regards
Md. Abdur Rahman

Unknown said...

Hi Rahman,
I want to install 11i(vision) in my HP laptop(1318 dv4 series). Laptop has come with pre-installed Vista in it. Now I dont want to lose this original vista for driver and other issues.Is it possible to install server 2003 in a external usb disk and boot the laptop from there. If it is possible then in that OS can I install Oracle apps. Please let me know. Thanks in advance.

Unknown said...

Hi Rahman,
I want to install 11i(vision) in my HP laptop(1318 dv4 series). Laptop has come with pre-installed Vista in it. Now I dont want to lose this original vista for driver and other issues.Is it possible to install server 2003 in a external usb disk and boot the laptop from there. If it is possible then in that OS can I install Oracle apps. Please let me know. Thanks in advance.

Mohammed Abdur Rahman said...

Hi Suvendu

The best option for you is to install any virtualization software (Eg. VMWare) on Vista OS and using this you can
install Server 2003 as well as Oracle applications on external usb disk. One advantage of this is that you can boot in with
Windows Vista and at the same time access the applications from within Vista. But I found some performance issues with this ,this may be because of
my old laptop :-).

All the best.

Regards
Mohammed Abdur Rahman

Unknown said...

Hey Rahman,

Thanks for ur quick response. Can you please post the installation of VMWare in your blog. It will be very helpful for all. Thanks again and keep up the good work.

Thanks,
Suvendu

Unknown said...

hi sir,
I have installed R12 in my external hdd becs. my laptop doesnt have the required configuration. i have used via Virtual machine but its getting too much slow (minimum 3-4hrs for loading) so nw i would like to change the laptop hdd to 500gb and ram to 4gb. I have downloaded all the required files frm edelivery.oracle.com. but i cant get the correct idea abt the installation. ie how to create the folders in stage r12? can you please explain this one??

Thanks & Regards,

Naveen

Unknown said...

hi sir,
I have installed R12 in my external hdd becs. my laptop doesnt have the required configuration. i have used via Virtual machine but its getting too much slow (minimum 3-4hrs for loading) so nw i would like to change the laptop hdd to 500gb and ram to 4gb. I have downloaded all the required files frm edelivery.oracle.com. but i cant get the correct idea abt the installation. ie how to create the folders in stage r12? can you please explain this one??

Thanks & Regards,

Naveen

Unknown said...

hi sir,
I have installed R12 in my external hdd becs. my laptop doesnt have the required configuration. i have used via Virtual machine but its getting too much slow (minimum 3-4hrs for loading) so nw i would like to change the laptop hdd to 500gb and ram to 4gb. I have downloaded all the required files frm edelivery.oracle.com. but i cant get the correct idea abt the installation. ie how to create the folders in stage r12? can you please explain this one??

Thanks & Regards,

Naveen

chander said...

Hi rahman
I read ur article abt installation its gud but I want to share my problem with u that is I tried to install r12 on windows xp several times but couldnt succeeded yet.every time it got stucked in step 2of 5 with 66% with an error rw-50004. log file says rc-50004 fatal error some rapidclone is not intiating like that.please help me its really urgent.
